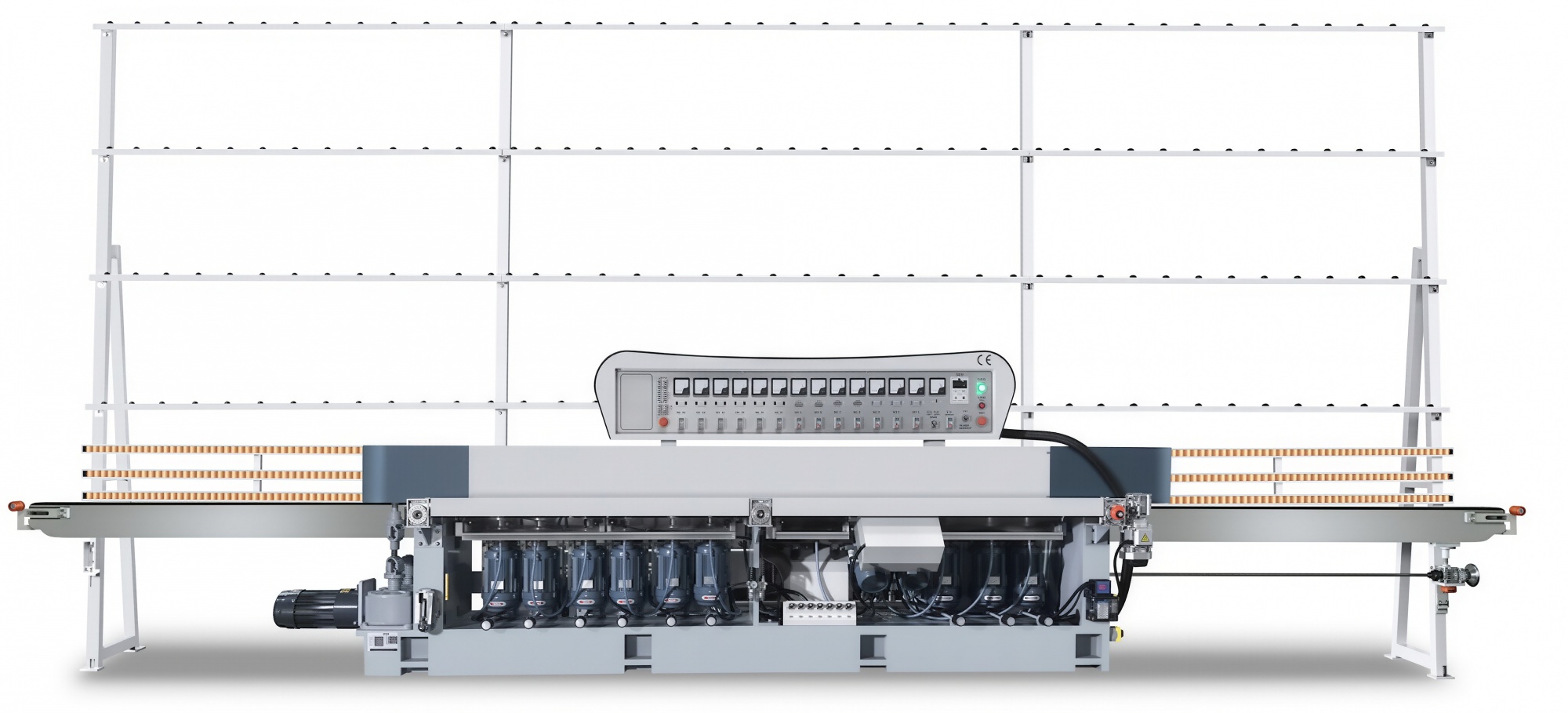

1. GAL-DE13330 is suitable for processing straight-line edge & 45 arrises on glass.
2. A special design for the in-feed section for controlling the grinding amount automatically.
3. The front and rear clamping plates of the beveling machine are made of 40cr steel and undergo quenching treatment, which can process large glass with high precision and has good wear resistance.
4. Input and output conveyors adopt timing belt which can increase the stability of the transmission.
5. Speed is adjusted by frequency inverter which makes the glass moving smoothly.
6. Manual, automatic and PLC control for glass thickness adjustment is for option.
1. GAL-DE13330 is suitable for processing straight-line edge & 45 arrises on glass.
2. A special design for the in-feed section for controlling the grinding amount automatically.
3. The front and rear clamping plates of the beveling machine are made of 40cr steel and undergo quenching treatment, which can process large glass with high precision and has good wear resistance.
4. Input and output conveyors adopt timing belt which can increase the stability of the transmission.
5. Speed is adjusted by frequency inverter which makes the glass moving smoothly.
6. Manual, automatic and PLC control for glass thickness adjustment is for option.
Model | GAL-DE13330 |
Min size glass | 60×60mm |
Glass thickness | 3-30mm |
Process speed | 0.5-4.8m/min |
Power | 28kw |
Weight | 4500kg |
Dimension | 9500x1100×2500mm |
